1000m/Min 220v High Frequency Copper Wire Preheater

Product Categories
Shanghai Qi Pang Industrial Co., Ltd.
Contact Now

1000m/Min 220v High Frequency Copper Wire Preheater

  • 1
  • 2
  • 3

Brand Name : QIPANG

Model Number : QP-4001

Certification : CE

Place of Origin : Shanghai

MOQ : 1

Price : RMB/USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50/Week

Delivery Time : 5-8days

Packaging Details : cotton or wooden boxes

Name : High Frequency Copper Wire Preheater

Usuage : Wire heat

Condition : New

Material : Steel

Wrranty : 1year

Voltage : 220v

Service : OEM / ODM

Contact Now

Product Description

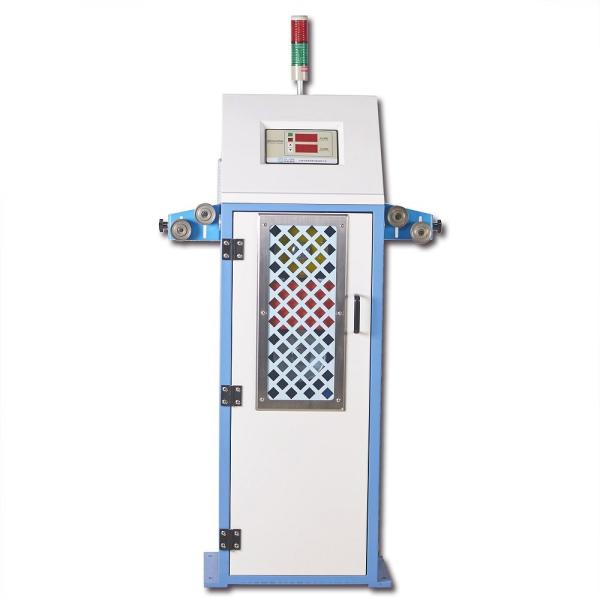

High Frequency Copper Wire Preheater QP-4001 For Wire Heat Carry Out Accurate Temperature Control
Product description:
QP-4001 series high frequency preheater adopts advanced frequency controller technology, which can accurately heat the wire or conductor before extrusion process, and preheat all kinds of metal conductors by on-line annealing. The IC interface unit can control the high frequency output power according to the speed of the production line to optimize the frequency and accurate voltage, create the advanced temperature control principle, carry out the accurate temperature control, and heat the wire. The series preheater pulley is machined accurately to ensure the moderate tension of the cable in production and to reduce the structural echo loss of the data cable. The low loss pulley is used for low speed to reduce the heat absorbed by the pulley and improve the efficiency of the preheater. The durable pulley is made of hard material to improve the wear resistance. In the production line, the adhesion between the outside and the conductor can be obviously improved. During the preheating process, the preheating temperature of more than 100 "C makes the water on the conductor evaporate, the molecular structure of the object is activated and soft, and the quality of the external brightness, bubble and attachment structure is obviously improved. Compared with the oven heating pipe heating equipment, it saves more than 60% electricity. By using the induction heating principle, the electric spark damage to the wire rod is less, the resistance to the preheating conductor is small, it is not easy to stretch, and the output preheating automatic speed tracks to ensure the consistency of the temperature when the wire speed is different. The utility model has the advantages of beautiful appearance, convenient use and stable performance.
Main technical parameters
Preheating capacity
Suitable line diameter
Adjustable using line speed
Preheating temperature
Guide wheel diameter
5KVA
0.1-1 0mm
12-1000m/min
20-300C adjustable
150mm
Using three-phase
Ambient temperature
AC380V 50HZ of Power supply
10-45C
1000m/Min 220v High Frequency Copper Wire PreheaterTo better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1000m/Min 220v High Frequency Copper Wire Preheater
Company Profile
00:00
04:05
1000m/Min 220v High Frequency Copper Wire PreheaterShanghai Qipang Industrial Co., Ltd., superior geographical location, head office is located in Shanghai, connected to Shanghai Port, trade prosperity, economic development, office and R & D personnel in Shanghai. The company has rich enterprise resources, excellent corporate culture, strong enterprise concept, to serve customers as the purpose, committed to creating industry leading brands, and domestic brands to the world, is one of the outstanding representative enterprises in the rapid economic development of the 21 century. The main products of the company are wire arrangement, I-disk rewinding machine, circular machine, rewinding machine, wire drawing and release machine, wire release machine, straightener, hydraulic straightening and cutting machine. The company to: "quality-oriented, reputation first, customer first" for the business purpose, the establishment and improvement of a huge sales service network, to provide customers with fast and convenient services, products have been in the leading position in China for many years. Specializing in wire and cable industry. Wire drawing equipment, metal products, textile industry and so on.
Bussines Card
If you have any questions,please contact me.Thank you!Whatsapp/Wechat:+86 13472640466
FAQ

Q1: Are you a factory or trading company?

We are a factory . We can promise you a short lead time and best price if you purchase
our machine. We also have our own trading department.

Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You
can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment.
After we sent the goods, we will give you the tracking number or other relative files for checking.
