25KV 220v High Frequency Sine Wave Sparking Tester

Product Categories
Shanghai Qi Pang Industrial Co., Ltd.
Contact Now

25KV 220v High Frequency Sine Wave Sparking Tester

  • 1
  • 2
  • 3

Brand Name : qipang

Model Number : QP-15ES

Certification : CE

Place of Origin : Shanghai

MOQ : 1

Price : RMB/USD Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50/Week

Delivery Time : 5-8days

Packaging Details : cotton or wooden boxes

Name : High Frequency Sine Wave Sparking Tester

Condition : New

Function : For Wire Cable Regularly check

Voltage : 220v

Weight : 22kg

Warranty : 1Year

Dimension : 50*35*50

After-sales service provided : Online support

Dimension(l*w*h) : 50*35*50

Contact Now

Product Description

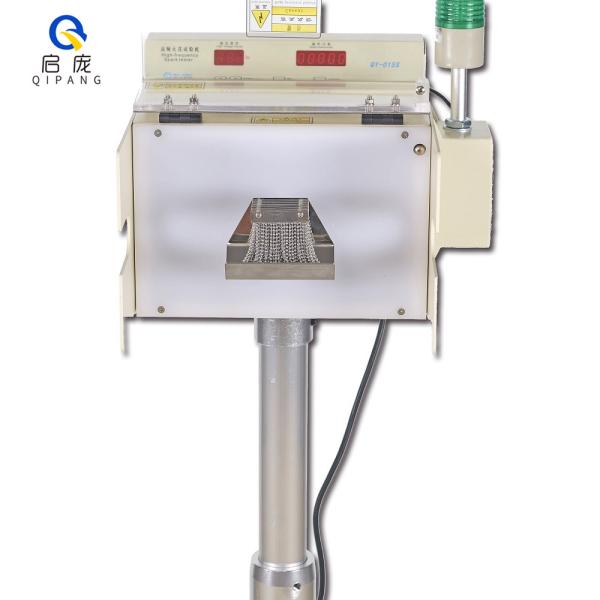

High Frequency Sine Wave Sparking Tester QP- 15ES For Wire Cable Regularly check
25KV 220v High Frequency Sine Wave Sparking Tester
QP- 15AC high frequency spark machine is a fast and reliable quality inspection tool, which is used to detect pinholes, skin breakage, bare copper and other fine insulation points in all kinds of conductor insulation layers such as wires and cables
on-line. It can quickly detect that the conductive body is defective without destroying the electrical conductor inside the outer quilt. Especially suitable for line diameter ≤ 5mm line speed ≥ 200m/min and strict quality testing requirements.
Product function
1.This product adopts epoxy resin pouring high pressure package, triple waterproof design, can be detected with water, when the wire insulation is poor contact,counting, acousto-optic alarm.
2.The size of the electrode head is about 50 times smaller than that of the traditional (50Hz).
3. A spark generated in an instant does not destroy the good insulation of the conductor of the wire
4. There is a safe switch chain protection device
5. There is a connection signal control with the fault or start of the receiving or host computer.
6. The fault of wire conductor with pinhole and broken skin can be detected quickly.
Breakdown instruction
(1) automatic breakdown counting acoustooptic alarm contact signal action automatic reset relay ball pressure detection state
(2) after manual breakdown counting, Nanguang arrived at the alarm contact card number R city output, Peng manual according to V
position according to twisting continuous high pressure detection state
Model
Detection voltage
Detect outer diameter
Line ground center height(adjustable)
Electrode size
QP-15A
0～15KV
Φ1.0～20mm
850-1050mm
30*120mm
QP-25A
0～25KV
Φ2.0～50mm
850-1050mm
30*120mm
QP-15AC
0~15KV
Φ1.0～20mm
850-1050mm
30*120mm
Packing & Delivery
25KV 220v High Frequency Sine Wave Sparking Tester
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
00:03
04:05
25KV 220v High Frequency Sine Wave Sparking Tester
Shanghai Qipang Industrial Co., Ltd., superior geographical location, head office is located in Shanghai, connected to Shanghai Port, trade prosperity, economic development, office and R & D personnel in Shanghai. The company has rich enterprise resources, excellent corporate culture, strong enterprise concept, to serve customers as the purpose, committed to creating industry leading brands, and domestic brands to the world, is one of the outstanding representative enterprises in the rapid economic development of the 21 century. The main products of the company are wire arrangement, I-disk rewinding machine, circular machine, rewinding machine, wire drawing and release machine, wire release machine, straightener, hydraulic straightening and cutting machine. The company to: "quality-oriented, reputation first, customer first" for the business purpose, the establishment and improvement of a huge sales service network, to provide customers with fast and convenient services, products have been in the leading position in China for many years. Specializing in wire and cable industry. Wire drawing equipment, metal products, textile industry and so on.
Bussines Card
If you have any questions,please contact me.Thank you!Whatsapp/Wechat:+86 13472640466
FAQ

Q1: Are you a factory or trading company?

We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.

Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department. Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment.
After we sent the goods, we will give you the tracking number or other relative files for checking.
