QIPANG 70+35 High-speed Plastic Extruder Line with Automatic Coiling Wraipping Machine BV BVN BVR RV
[Application]:
It is suitable for high-speed extrusion of PVC, PP, PE and other plastics.It is mainly used to produce UL electronic wires,
computer wire core wires, power wire core wires, automotive wires, BV, BVV building wires, power wires, computer wires, and
insulated wires Extrusion of sheaths, power cords, power cables, etc.
[Equipment Structure of Equipment]:

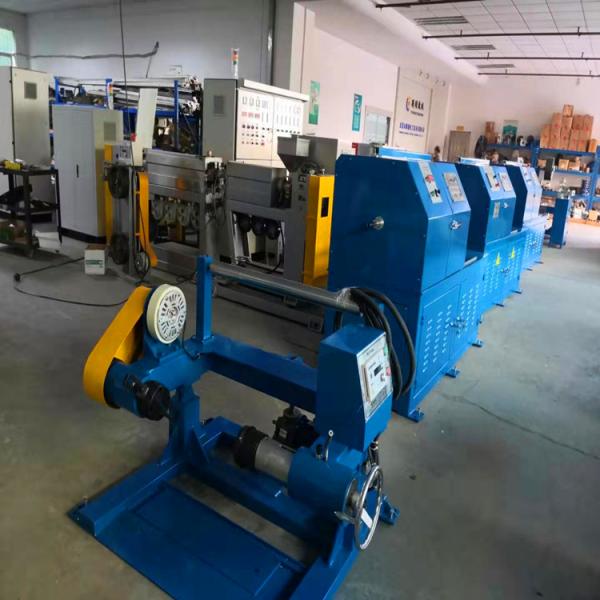

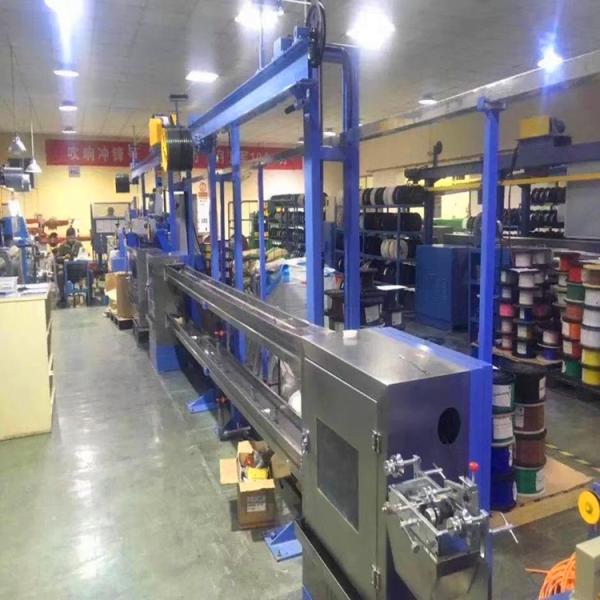

It consists of accessories such as pay-off rack, straightener, main machine, main control cabinet, printer, water tank, wheel
tractor (crawler tractor), wire storage rack, spark machine, twin-shaft or non-shaft winder. Optional active pay-off, powder
passing machine, shaftless pay-off, copper wire preheater, laser laser caliper, high-frequency spark machine, etc.
| Model | Dia.
(mm) | L/D Ratio | Rotation Speed (r/min) | PVC | LDPE | PP | Main Motor Power | Total Power | Finished Wire Dia |
| FJX-30 Extrusion | Φ30 | 25:1 | 20-110 | 25 | 16 | 13 | 5.5 | 21 | 0.2-1 |
| FJX-40 Extrusion | Φ40 | 25:1 | 20-110 | 40 | 20 | 17 | 7.5 | 24 | 0.4-3 |
| FJX-50 Extrusion | Φ50 | 25:1 | 20-110 | 80 | 40 | 34 | 11 | 28 | 0.8-5 |
| FJX-60 Extrusion | Φ60 | 25:1 | 15-110 | 100 | 53 | 41 | 18.5 | 42 | 1-8 |
| FJX-70 Extrusion | Φ70 | 25:1 | 15-110 | 130 | 86 | 68 | 22-37 | 50 | 2-12 |
| FJX-80 Extrusion | Φ80 | 25:1 | 10-90 | 200 | 122 | 96 | 30-55 | 65 | 3-25 |
| FJX-90 Extrusion | Φ90 | 25:1 | 10-80 | 240 | 133 | 124 | 37-75 | 75-113 | 5-35 |
Equipment classification
1. According to the particularity of wire and cable technology requirements, various peripheral equipment designed and produced by
our company can be selected to form the following production lines:
a , Electronic wire power line extrusion production line
b , Automotive cable extrusion production line
c, BV BVR building wiring extrusion production line
d. Network data line extrusion production line
e. Power cable extrusion production line
f. Low-smoke halogen-free cable extrusion production line
g. Electric heating belt extrusion line
h. Teflon high temperature extrusion production line
2. It can be divided into 30, 35, 40, 45, 50, 60, 65, 70, 80, 90, 100, 120, 150mm and other specifications according to the
diameter of the extrusion screw.
