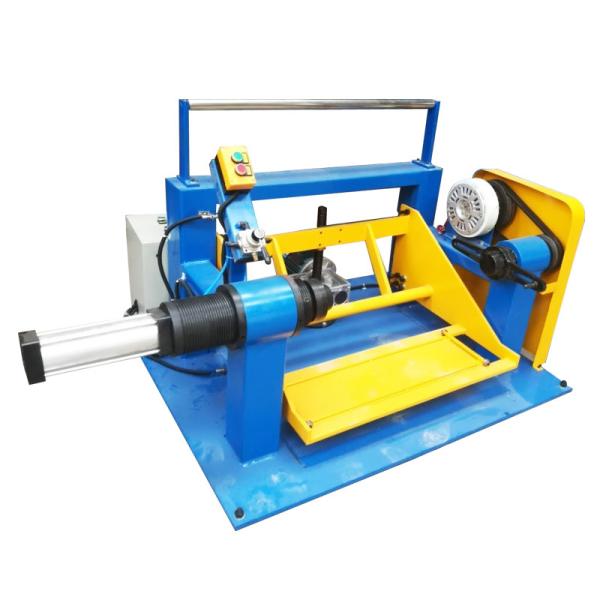

Shanghai Qipang lastest design adjustable speed PVC spool winding machine with electric lift and manual chuck.
Company Profile:
"Quality first, customer first". Shanghai Qipang Industrial Co., Ltd. is a high-tech enterprise integrating R&D, design, manufacture and service of wire equipment, and has its own import and export rights. Founded in 2003, the company has passed ISO9001:2008 quality management system certification and SGS third-party authority certification. The company's main customers come to Central Europe, South America, South Africa, most of Asia. Companies adhere to the quality of survival, integrity to win the customer's operating principles, down-to-earth to actively listen to the valuable opinions of users.
Product Details:
1, Φ630-Φ1000mm active pay-off machine
(1) Adaptation disc diameter: Φ630-Φ1000mm, Φ1000mm, coil width 475750mm, inner hole 56/80mm
(2) Top shaft mode: no shaft top cone pneumatic top tight
(3) Line speed: MAX200 m / min
(4) Coil lifting: 0.75KW electric screw lifting
(5) Power: 4KW motor drive spool release line
(6) Brake: 10KG electromagnetic brake
(7) Maximum load capacity: 3000 kg

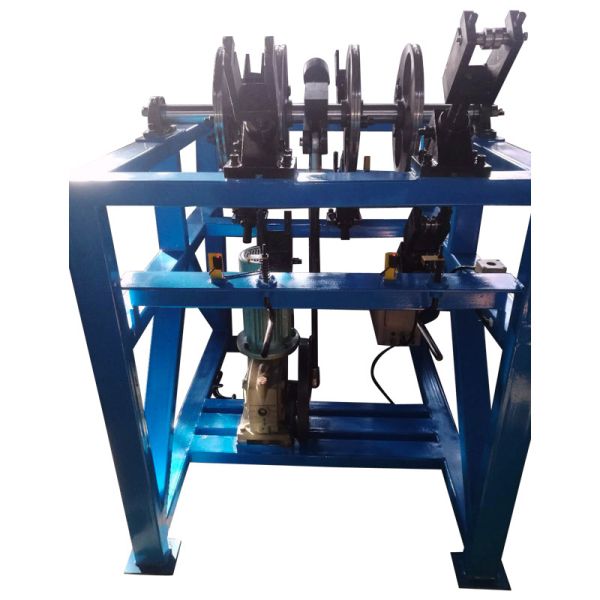

2, vertical tension storage rack
(1) The total height is 2 meters;
(2) The storage line volume is 0-15 meters, and the storage line wheel is Φ400mm (4 groups + 3 groups);
(3) Adaptation wire diameter: 0.5-10mm2 hard wire, Ф15mm soft wire;
(4) Guide wheel material: aluminum alloy material, surface hardening treatment;
(5) Control mode: The sensor gives a 0-10V voltage signal to control the speed of the line.
3, meter meter device
(1) Form: one-way stop;
(2) The rubber wheel is used on the surface of the meter wheel and the pressure roller to ensure that the wire is not damaged.
4, 400-630 shaftless take-up machine
(1) Adaptation diameter: PN400-PN630, coil width 280-475mm, coil aperture Φ56mm
(2) Applicable line speed: 200m/min
(3) Top shaft mode: no shaft top cone type
(4) Coil lifting: electric screw lifts, the upper and lower limits are safe and reliable
(5) Cable: Φ30 polished rod cable, adjustable row spacing. Wire-receiving method: 10N.M torque motor wire
Bilateral top shaft power take-up machine
| Model | QPX630 | QPX 800 | QPX 1000 | QPX 1250 |
| Line diameter | φ2-φ5mm | φ2-φ6mm | φ3-φ12mm | φ3-φ18mm |
| Coil width | ≤630mm | ≤800mm | ≤1000mm | ≤1250mm |
| speed | 400m/min | 400m/min | 300m/min | 200m/min |
| strength | 25N/M | 25N/M | 36N/M | 50N/M |
| power | 4KW | 4KW | 5.5KW | 7.5KW |
| Listing | electric/hydraulic | electric/hydraulic | electric/hydraulic | electric/hydraulic |
| Clamping | Pneumatic/Manual | Pneumatic/Manual | Pneumatic/Manual | Pneumatic/Manual |
Bilateral top axle power take-up stand:
| Model | QPF 800 | QPF1000 | QPF 1250 | QPF 1500 |
| Line diameter | ≤10mm | ≤15mm | ≤20mm | ≤30mm |
| Coil width | φ630-φ800mm | φ800-φ1000mm | φ800-φ1250mm | φ1000-φ1250mm |
| speed | ＜600r /min | ＜500r /min | ＜400r /min | ＜400r /min |
| power | 4KW | 5.5KW | 5.5KW | 7.5KW |
| Lifting motor | 0.75KW | 1.5KW | 1.5KW | 1.5KW |
| Lifting | electric/hydraulic | electric/hydraulic | electric/hydraulic | electric/hydraulic |
| clamping | Pneumatic/Manual | Pneumatic/Manual | Pneumatic/Manual | Pneumatic/Manual |
