Gantry Type Wire Spooling Machine Motorized Cable Spooling Equipment

Name: Gantry Type Wire Spooling Machine Motorized Cable Spooling Equipment
Brand: qipang
Price: 1 USD

Wholesale Gantry Type Wire Spooling Machine Motorized Cable Spooling Equipment from china suppliers

Brand Name : qipang

Model Number : Gantry type

Certification : SGS

Place of Origin : Shanghai

MOQ : MOQ≥1

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 50 PC per day

Delivery Time : 30 working days

Packaging Details : Carton, wooden box

Name : Qipang winding machine

Type : TC1000

Material : Aluminum Alloy

Weight : 120 kg

Function : Uniform winding

Application : Coiling line on the spool

Warranty : 1year

guide wire : rolling ring drive

Voltage : 380V

Contact Now

Qipang Wire Take Up Machine Gantry type receiving discharge line machine winding machine Coiling line on spool

Uses: Mainly used for winding various large diameter cables
Mechanical specifications:

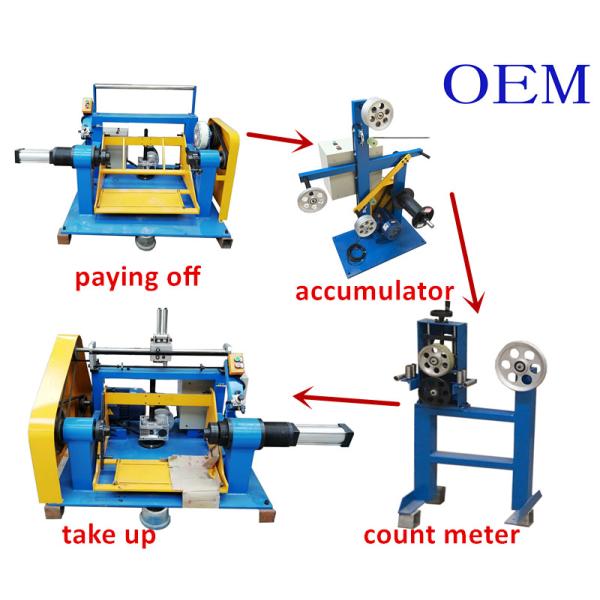

Storage line:
1, form: vertical or horizontal.
2, used to connect the pay-off machine or the extruder to keep the linear tension
3, to ensure that the line is flat and beautiful.
4, the storage line frame can be designed and manufactured according to the needs of customers.

Uses: Mainly used for winding various large diameter cables

Product show :

Gantry Type Wire Spooling Machine Motorized Cable Spooling Equipment

Machine Type	QP-2000	QP-2500	QP-3150	QP-3500	QP-4200	QP-4500	QP-5000
Applicable coil specifications	PN1000-PN2000	PN1600-PN2500	PN1600-PN3150	PN2000-PN3500	PN2000-PN4200	PN2500-PN4500	PN3000-PN5000
Applicable coil width	750-1500	1180-1900	1180-2300	1500-2300	1500-2400	1900-2500	1900-2500
Applicable cable outer diameter	≤25	≤45	≤80	≤100	≤120	≤120	≤150
Maximum load	10T	12T	18T	20T	25T	30T	35T
Take-up speed	6.2-25.6	4.9-20.6	3.3-13.8	3.3-13.8	3.3-13.8	3.3-13.8	3.3-13.8
Take-up motor (DC)	5.5	5.5	7.5	7.5	7.5	11	11

Qipang Wire Take Up Machine Gantry type receiving discharge line machine winding machine Coiling line on spool
