Strand Surgical Braided Rope Loom Machines Shoe Lace Rope Braiding Machine
Suitable material:PP Polyester PE HDPE Cotton Nylon Dyneema etc

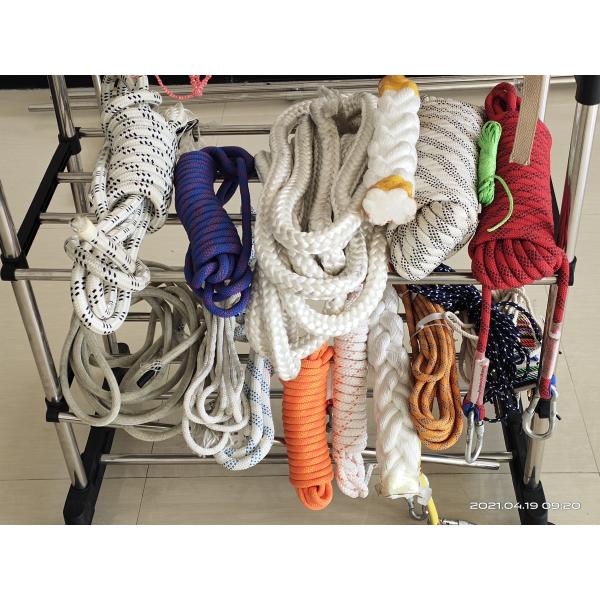

Range of products:Gift bag ropes,high tension ropes,fishing lines,safty ropes,fiberglass sleeves,round elastic bands,hollow ropes,core ropes,etc
This machine uses frequency conversion stepless speed regulation, sensitive stop when yarn breaks, synchronous feeding of core, yarn breaking control of core , low energy consumption and high output.
Suitable for weaving all kinds of round or flat non-elastic and elastic ropes, mainly weaving all kinds of ropes, shoelaces, elastic bands, decorative belts, high-tension belts, fishing net lines, fishing lines, tow ropes, marine ropes, sports belts , Curtain tape, wire, fiber and other high-quality products.
Function of Rope Braiding Machine :
1: High quality parts, reasonable structure, stable operation and longer service life.
2: It is not easy to break the thread or wear the surface of the raw material when weaving. If there is a cored product, automatic feeding can be used, and the amount can be sent correctly regardless of whether the core is large or small
3: The automatic yarn breaking and power failure device of this machine is fast and accurate. When the packing core is used up or the wire is broken, the machine will automatically stop running, so in the case of unmanned operation, the machine can be operated safely to increase output and reduce costs.
4: The motor adopts frequency conversion control, stepless speed change, easy to control the speed of speed, and overload protection.
| Model | Spindle Qty | Head Qty | Dimension(mm) | Power(KW) | Horngear size(mm) | Max Horngear speed(rpm/min) | Bobbin size(mm) | Weight(kg) | Rope dia(mm) |
| 500-12-1 | 12 | 1 | 2500*2500*4500 | 3.7 | 500 | 5 | φ350*800 | 12000 | 30-120 |
| 440-24-1 | 24 | 1 | 2700*2640*4500 | 3.7 | 440 | 5 | φ225*560 | 10000 | 30-120 |
| 440-12-1 | 12 | 1 | 2400*2400*4500 | 3.7 | 440 | 5 | φ225*560 | 8000 | 20-60 |
| 440-8-1 | 8 | 1 | 2000*2000*4500 | 3.7 | 440 | 5 | φ225*560 | 5000 | 15-40 |
| 272-32-1 | 32 | 1 | 2700*2640*4500 | 3.7 | 272 | 5 | φ130*400 | 11000 | 20-60 |
