fully automatic wire&cable stripping and cutting machine suitable for many kinds of cables
Application:
With key operation , the length of the peeling ,the stripping head and half strip can be set optionally at high speed mode.low cost and endurable ,there is no need for maintenance.
It can cut and peel wires less than 4 mm², widely used in auto and electricity industries .with high speed and high precision drive,the stripping series adopted step driving.
Usage for cable stripper or cutting, and mainly for switch board machine, electric working, Construction building etc.
| Model | 2.5 square wire stripper |
| Cutting length | 1mm-9999mm |
| Stripping length | Head stripping 15 tail stripping 10 |
| Cutting line core | 0.1-2.5mm square |
| The middle strip | 15 |
| Vessel diameter | 1.5-3.5mm |
| The blade material | Imported high speed steel |
| Drive way | Four-wheel drive |
| The power supply | AC220V/110V |
| Overall dimensions | 400*300*330 |
| Weight | 25KG |
| The production efficiency | 3000-8000 bars/h |
| Line pressure to adjust | There are |
| Note function | Automatic outgoing line,incoming line,timed start,silent hybird,stepping motor |
Feature:
1) It is superior in performance, safety operation and convenience
2) Based on the most popular model in the ZDBX series
3) ZDBX Automatic cutting and stripping machine incorporates the most advanced technology.
4) Fully computerized with LCD display and can store up to 248 information.
5) New improved safety features ensure "zero" wastage.
6) The machine can stop operating automatically if it reaches the end of the coil wire.
7) One-year warranty, full-life service
8) CE Approved
Automatic computer wire stripping machine square cable cutting equipment
Fully-automatic wire & cable stripping and cutting machine adopt in many kinds of cables

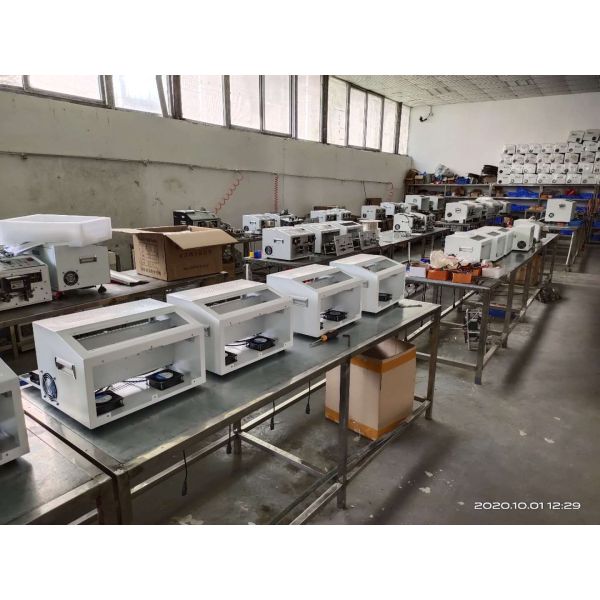

The company was established in 2009. The company's products include various types of winding machines and accessories such as rolling ring drives, coil winding machines, cable winding machines, textile yarn winding machines, and automatic coil transformer winding machines.
Since its establishment, the factory has always adhered to the principle of quality first and has been developing world-class products. Under the effective operation of the quality assurance system, the quality of products and processed products has been continuously improved. Our products have won a good reputation in the industry and won the precious trust between new and old customers. Our products sell well at home and abroad, including Europe, America, Southeast Asia, Middle East and other countries and regions. We pay more attention to the principle of honest management, mutual benefit and customer first. Our company has been working hard to make it more creative and reliable. We sincerely hope to cooperate with new and old friends to create a brilliant tomorrow!
FAQ
Q1 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
Q2: Will you provide operation guidance for us?
We will send the instruction book with the machine and send you a video about how to operate the machine.
Q3 : How long is the warranty period?
12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.
Q4 : What certification do you have?
All of our machines have the SGS certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
Q5: Can visit your factory?
Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term. The nearest airport is shanghai HongQiao airport and shanghai Pudong airport. We can pick you up from the airport .
Product Tags:
|
|
220V 4 Wheel Drive 2.5mm Wire Stripping Cutting Machine Images
|
